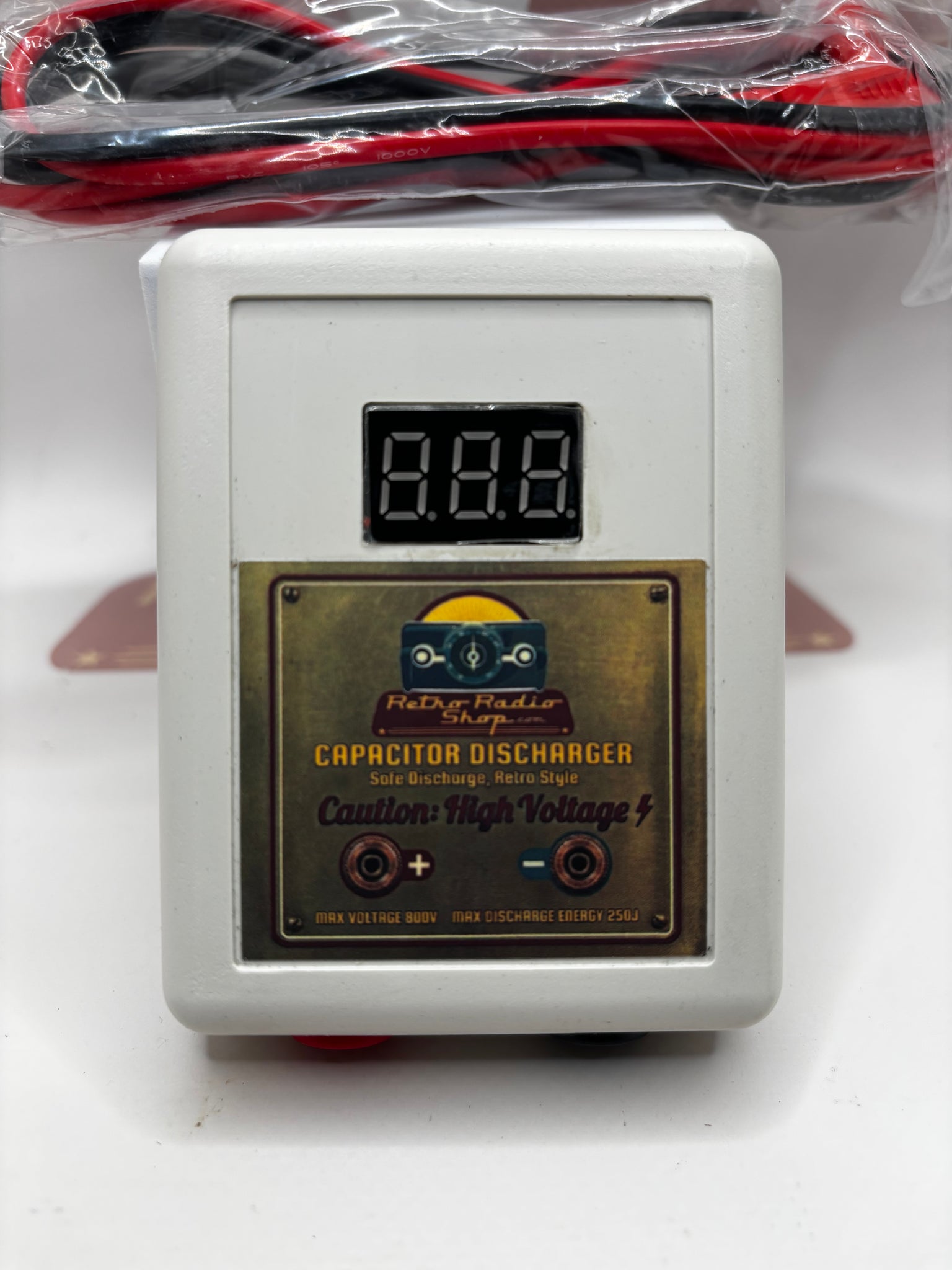

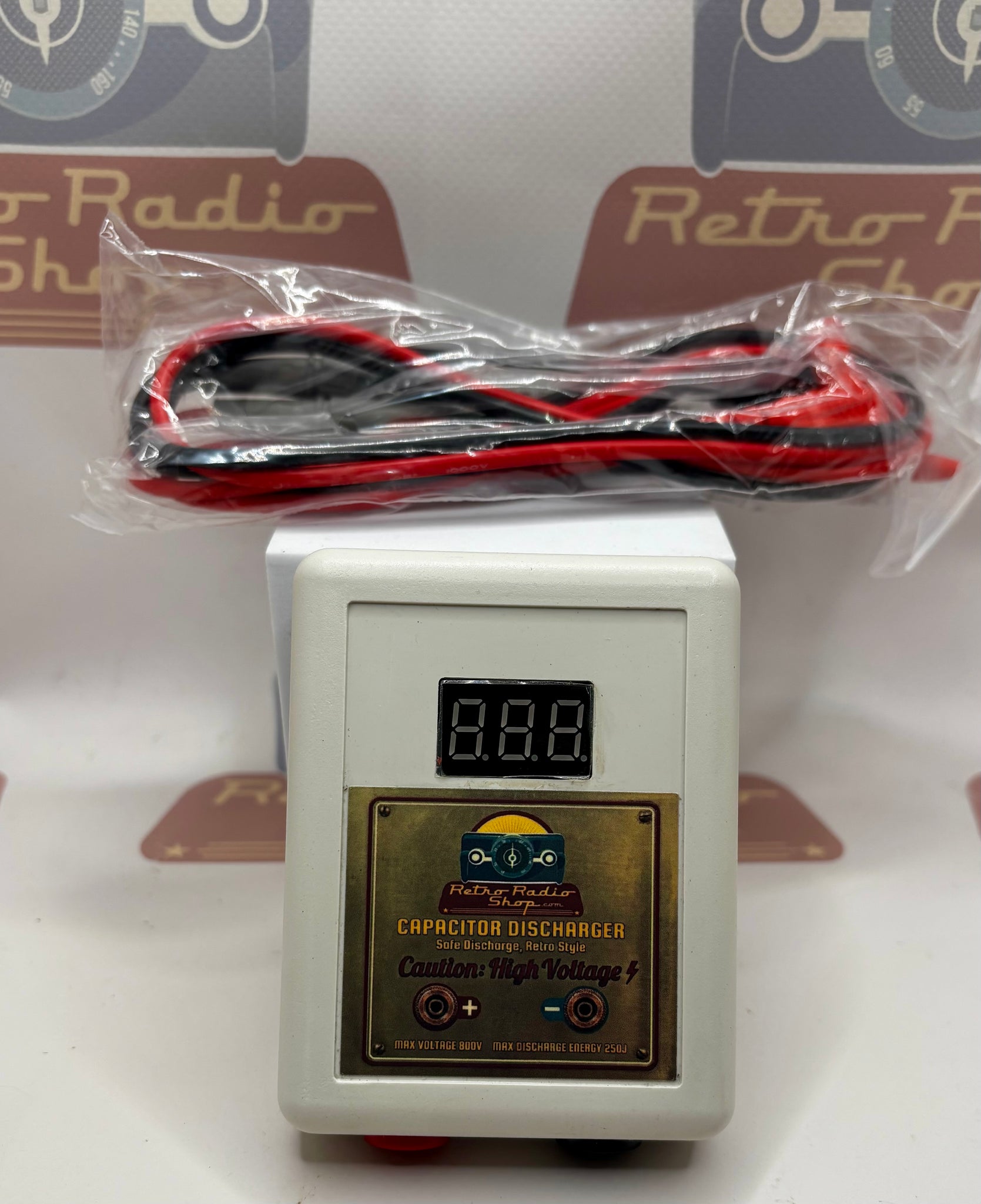

High Voltage Capacitor Discharger

1. Introduction to Capacitor Safety & the High Voltage Capacitor Discharger Tool

Firstly, a tech needs a Capacitor Discharger Tool as a critical piece of equipment.In the field of electronics restoration and repair, particularly with vintage equipment, high-voltage capacitors pose a significant safety risk.These components act as energy reservoirs, capable of storing a lethal electrical charge long after someone disconnects the device from a power source.

For instance, if you attempt to discharge these components by "shorting" the terminals with a screwdriver, you create a high-current arc flash, which can damage sensitive circuitry, pit tools, and cause physical injury.Therefore, when you utilize a dedicated capacitor discharger, it ensures that the stored energy dissipates in a controlled manner and safely, protecting both you and the equipment.

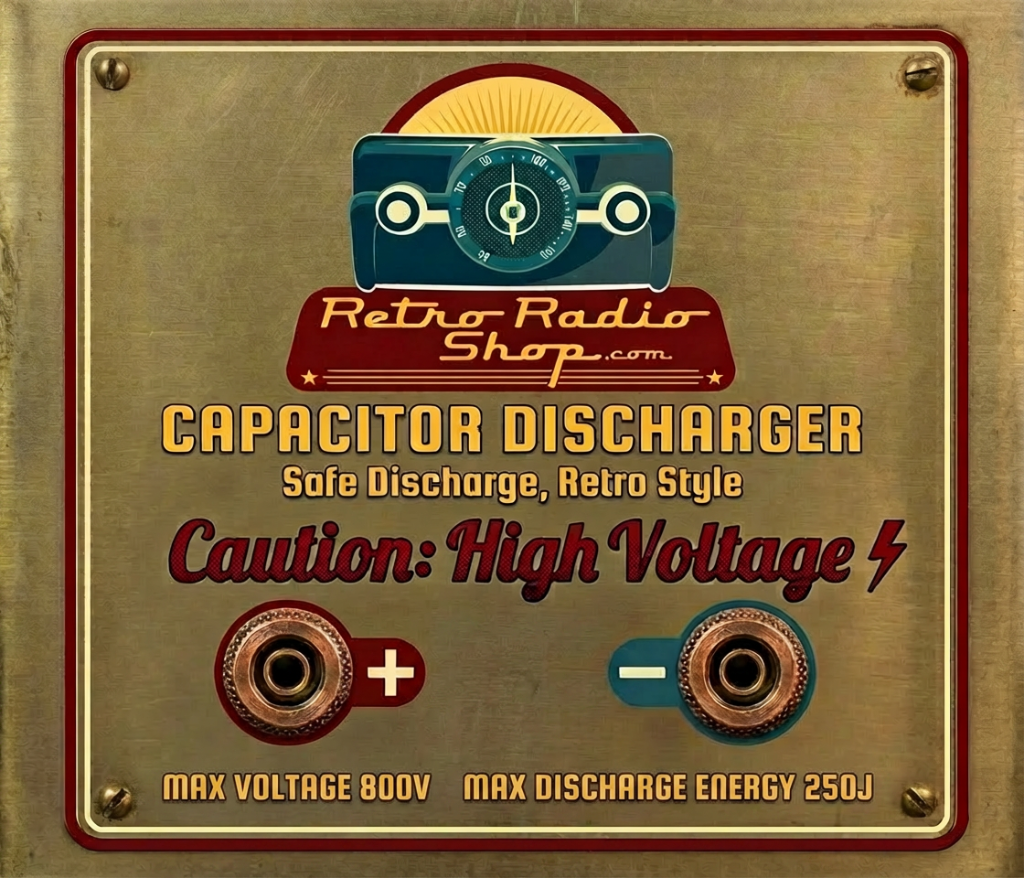

2. Technical Specifications

• Maximum Operating Voltage: 800 VDC
• Maximum Energy Capacity: 300 J
• Minimum Operating Voltage (Display):  9VDC
• Discharge Method: Constant current/resistive dissipation (spark-free)
• Measurement Function: Integrated DC Voltmeter (for potentials > 9VDC)

3. Operating Instructions

Follow these steps to ensure the safe and effective discharge of a capacitor.

1. Above all, Power Down: Ensure the device under repair is completely disconnected from the AC mains or any external power supply.

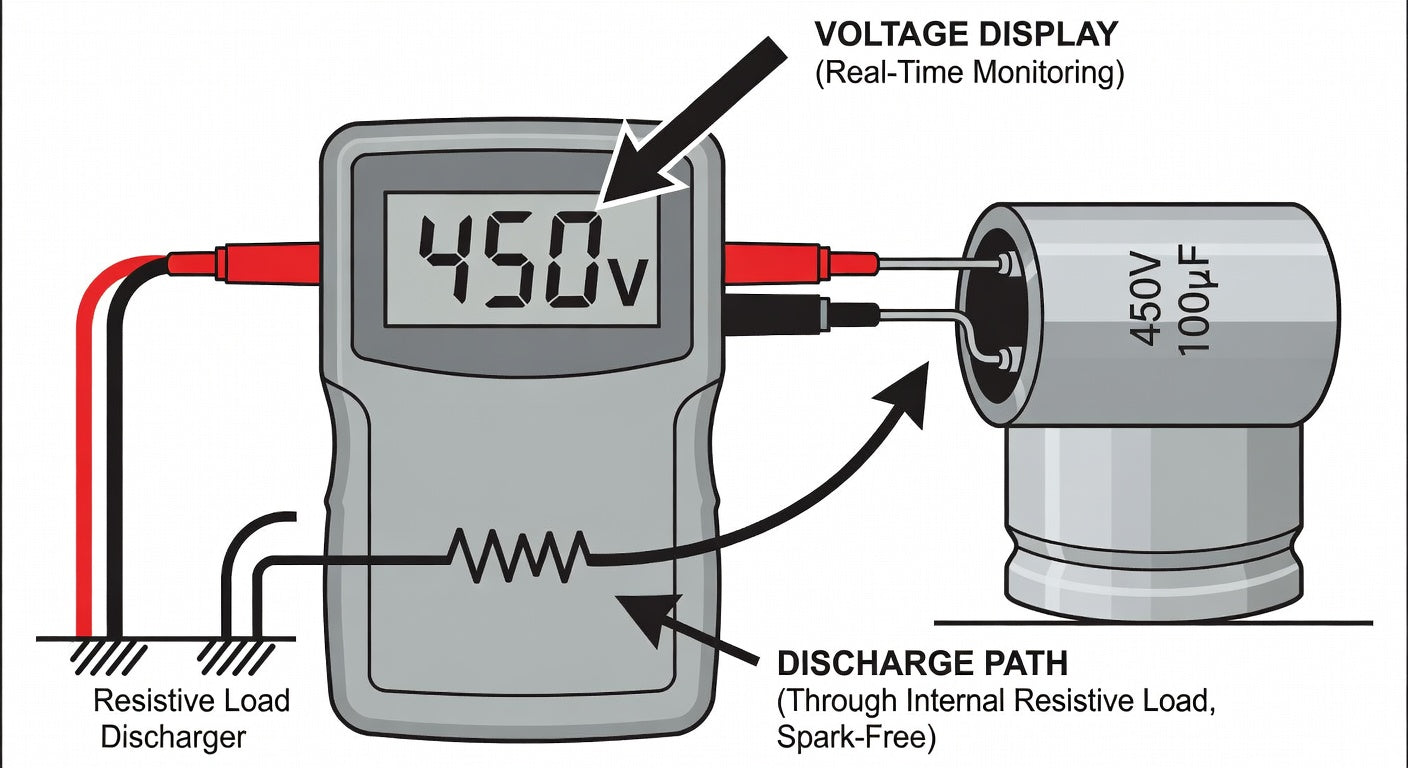

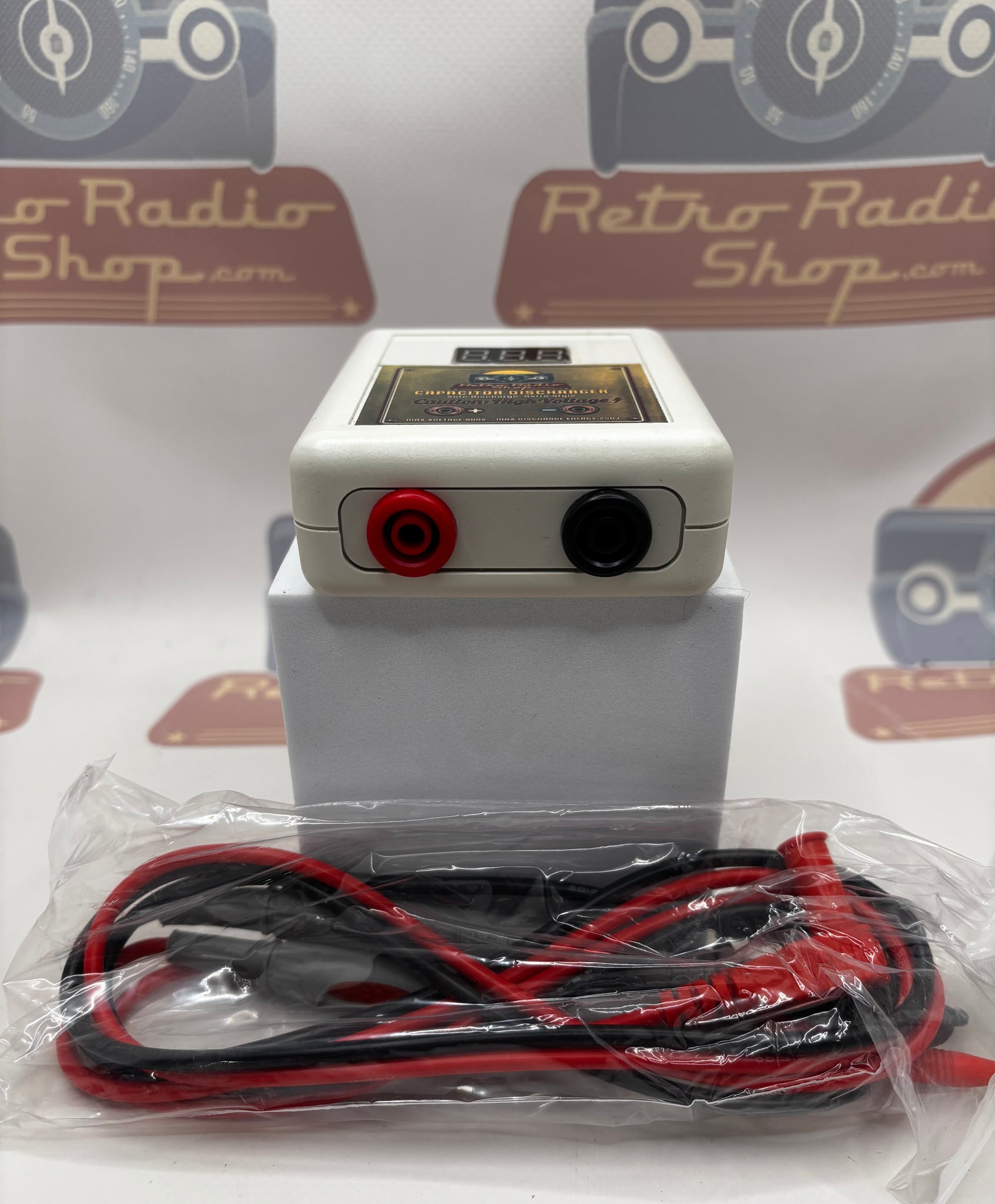

2. Probe Connection: Connect the two probes of the Capacitor Discharger to the terminals of the capacitor.
• Note: The device is non-polarized for the discharge function; the probes can be placed on either terminal regardless of polarity.

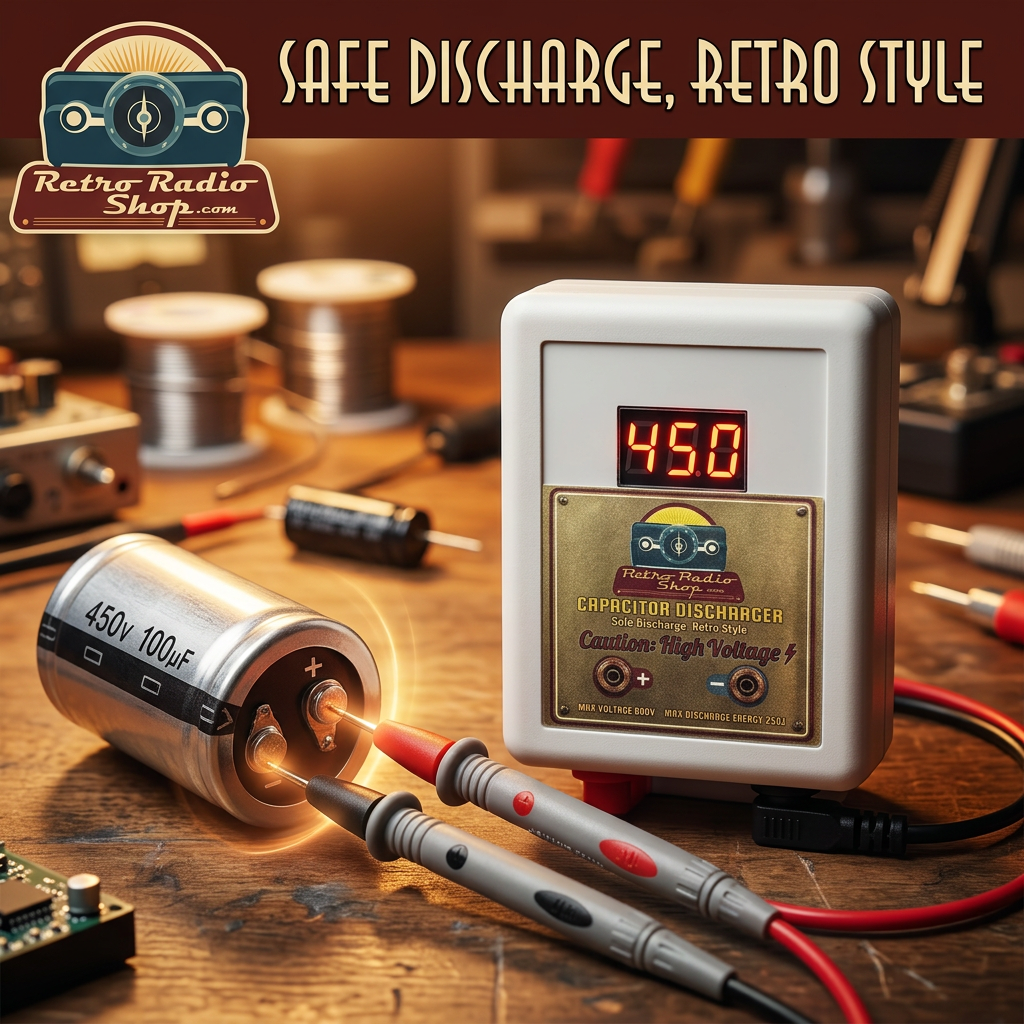

3. Voltage Monitoring: If the capacitor holds a charge greater than 9V, the integrated display will illuminate, showing the current real-time voltage.
4. Discharge Process: Subsequently, the Capacitor Discharger will immediately begin dissipating the energy.  Simultaneously, you will observe the voltage reading on the display decreasing rapidly.
5. Lastly, final Dissipation: Once the potential drops below 9V, the display will dim and turn off.
• Critical: Although the display is off, a residual charge may still exist. Keep the probes firmly in contact with the terminals for an additional 5seconds to ensure the voltage is reduced to a safe, near-zero level.

4. Using as a DC Voltmeter

Additionally, this unit functions as a digital voltmeter for DC circuits. When the probes are applied to a live DC source:

• The Capacitor Discharger display will indicate the voltage present, provided the source is above 9V
• This is particularly useful for verifying the state of power supply rails in tube amplifiers and vintage radios.
•  Do not exceed the maximum rated voltage of 800V

5. Capacitor Discharger Safety Warnings and Maintenance

• Energy Limits: Do not attempt to discharge capacitor banks exceeding 300 Joules of stored energy. Stored energy E in Joules is calculated as:
  E = 1/2 · C · V²   where C is capacitance in Farads and V is voltage in Volts.
• Heat Dissipation: During high-energy discharges, the unit may become warm. However, this is normal operation as the electrical energy converts into thermal energy.
• Inspection: Regularly inspect the probe leads for insulation cracks or damage. Do not use the device if something compromises the housing or cables.
